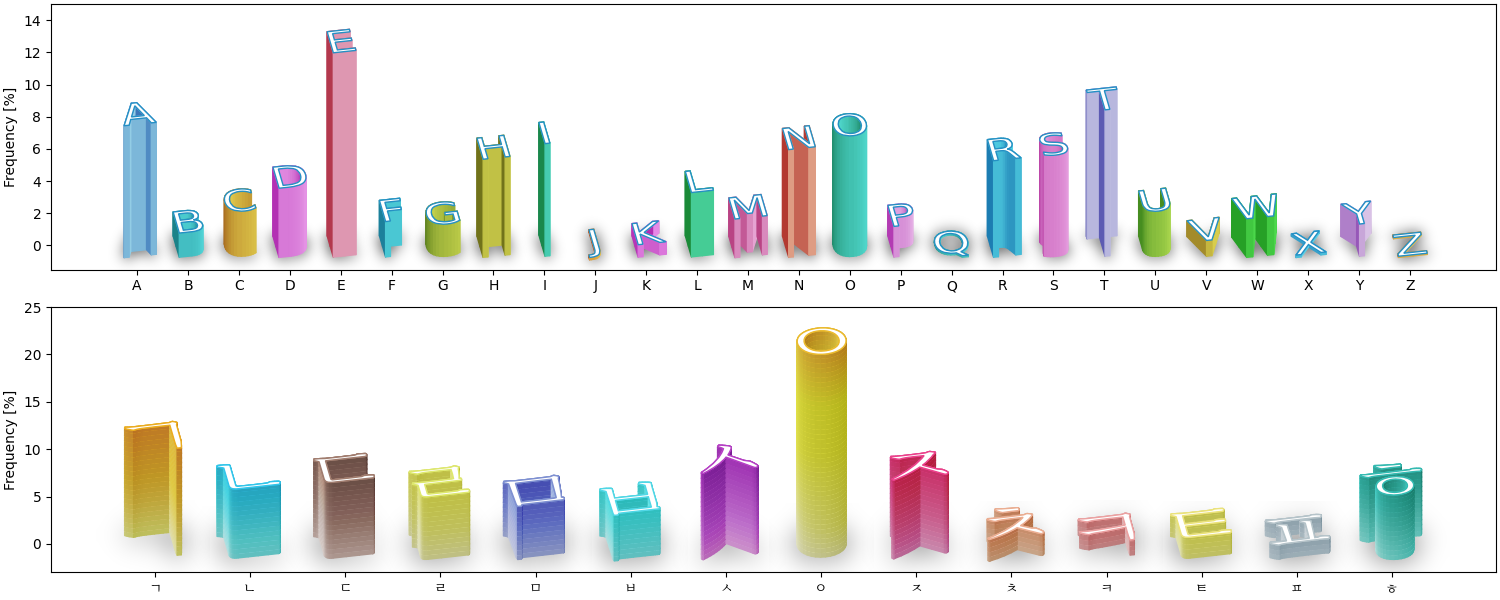

Demo with alphabet freqeuncy

import numpy as np
from pathlib import Path
from matplotlib.font_manager import FontProperties

from matplotlib.colors import LightSource
from mpl_poormans_3d import BarToCharPrism
import mpl_visual_context.patheffects as pe
import mpl_visual_context.image_effect as ie

import matplotlib.pyplot as plt

from SecretColors import Palette

fig, axs = plt.subplots(2, 1, num=1, clear=True, figsize=(15, 6), layout="constrained")

# alphabet frequency data from wikipedia : https://en.wikipedia.org/wiki/Letter_frequency

abcd = [chr(ord("A") + i) for i in range(26)]  # A - Z
freq = [8.2,
        1.5,
        2.8,
        4.3,
        12.7,
        2.2,
        2.0,
        6.1,
        7.0,
        0.15,
        0.77,
        4.0,
        2.4,
        6.7,
        7.5,
        1.9,
        0.095,
        6.0,
        6.3,
        9.1,
        2.8,
        0.98,
        2.4,
        0.15,
        2.0,
        0.074]

if True:
    ax = axs[0]

    x = np.arange(len(abcd))
    ax.bar(x, freq)
    ax.set_xticks(x, abcd)
    ax.set_ylim(-1.5, 15)
    ax.set_ylabel("Frequency [%]")

    ls = LightSource(azdeg=25+90)

    fp = FontProperties("sans serif")

    import seaborn as sns
    cc = sns.color_palette("husl", 26)

    rs = np.random.RandomState(8)
    idx = rs.choice(len(cc), len(cc), replace=False)
    cc = np.array(cc)[idx]

    for p, fc, c in zip(ax.patches, cc, abcd):
        # p.set_fc(color)
        bar_to_prism = BarToCharPrism(ls, c,
                                      ratio=0.6,
                                      rotate_deg=10,
                                      fraction=0.5,
                                      scale=1.2,
                                      # fontprop=fp,
                                      distance_mode=np.mean)

        p.set_path_effects([#pe.FillOnly(),
            (bar_to_prism.get_pe_face(0)
             | pe.FillColor("k")
             | pe.ImageEffect(ie.Pad(20) | ie.Fill("k") | ie.GaussianBlur(5))),
            pe.FillColor(fc) | bar_to_prism,
            (bar_to_prism.get_pe_face(1)
             | pe.FillColor("w")
             ),
        ])

# from https://story.pxd.co.kr/958, w/o double consonant
hangul_consonant = "ㄱㄴㄷㄹㅁㅂㅅㅇㅈㅊㅋㅌㅍㅎ"
hangul_freq = [11.3, 7.3, 8.0, 6.6, 5.6, 4.8, 9.1, 21.4, 8.3, 2.3, 1.6, 2.2, 1.5, 6.8]

if True:
    ax = axs[1]

    import mplfonts
    from mplfonts.conf import FONT_DIR # , RC_DIR
    from pathlib import Path
    # fname = Path(FONT_DIR) / "NotoSansMonoCJKsc-Regular.otf"
    fname = Path(FONT_DIR) / "NotoSerifCJKsc-Regular.otf"
    # fname = Path(FONT_DIR) / "SourceHanSerifSC-Regular.otf"
    fp = FontProperties(fname=fname)

    x = np.arange(len(hangul_consonant))
    ax.bar(x, hangul_freq)
    ax.set_xticks(x, hangul_consonant, fontproperties=fp)
    ax.set_ylim(-3, 25)
    ax.set_ylabel("Frequency [%]")

    ls = LightSource(azdeg=25+90)

    import seaborn as sns

    palette = Palette("material")
    cnames = list(c for c in palette.colors.keys() if c not in ["black", "white"])
    rs = np.random.RandomState(8)
    cnames = rs.choice(cnames, len(cnames), replace=False)

    for p, cn, c in zip(ax.patches, cnames, hangul_consonant):
        cc = [palette.get(cn, shade=shade) for shade in np.linspace(20, 90, 50)]
        segment_params = (ax, 25, cc, None)

        bar_to_prism = BarToCharPrism(ls, c,
                                      ratio=0.6,
                                      rotate_deg=10,
                                      fraction=0.5,
                                      scale=1.2,
                                      fontprop=fp,
                                      segment_params=segment_params,
                                      distance_mode=np.mean)

        p.set_path_effects([#pe.FillOnly(),
            (bar_to_prism.get_pe_face(0)
             | pe.FillColor("k")
             | pe.ImageEffect(ie.Pad(20) | ie.Fill("k") | ie.GaussianBlur(10))),
            pe.FillColor(fc) | bar_to_prism,
            (bar_to_prism.get_pe_face(1)
             | pe.FillColor("w")
             ),
        ])


plt.show()
